Ultracharge 160
Intelligent ultra-rapid EV charging station

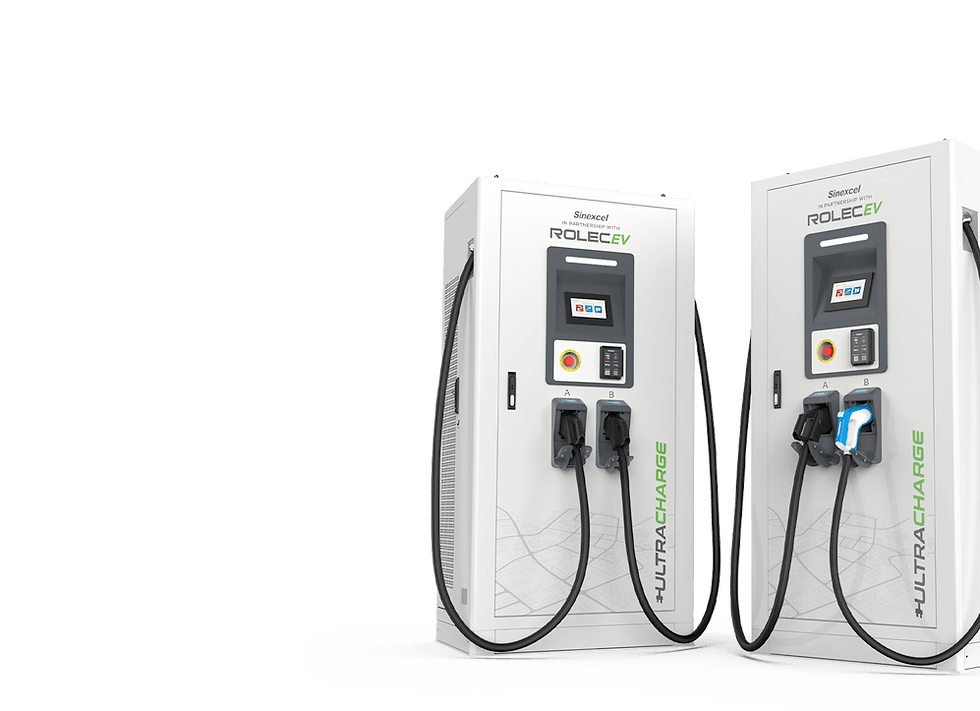

About the Rolec Ultracharge 160
Our latest DC ultra-rapid charging station, ULTRACHARGE 160, is an intelligent modular and scalable charger that can be upgraded in modules of 20kW, up to 160kW. A cost-effective solution for public, fleet and highway infrastructure deployment.With four standard power configurations; 60kW, 80kW, 120kW or 160kW, its dynamic power balancing feature enables two vehicles to charge simultaneously. It can be activated via mobile app, RFID, Apple Pay, Google Pay or contactless payment. Conforms to the ISO 15118 Plug & Charge standard.
Features
- Plug & charge, app, RFID or contactless payment controlled charging
- Offer up to 2x DC charging outputs
- Up to 160kW charging speeds (CHAdeMO up to 62.5kW | CCS2 up to 160kW)
- Upgradeable power modules
- OCPP 1.6 compliant (can integrate with any back-office)
- Over-the-air firmware/software updates
- Intelligent dynamic power-sharing
- Supports static load management
- 7” HD user interface touchscreen
- Integrated RFID / NFC / contactless card payment terminal
- 4G / Ethernet connectivity
- 96% Peak efficiency
- Ultrawide constant power output voltage range 300V – 1000V
- Under/overvoltage, DC overcurrent, over-temp & surge protection
- Long-reach 5m charging cables (4.5m external)
- Emergency stop
- IP55, IK10 protection rating
- Easy to install, maintain and service
- Stocked in the UK by Rolec EV
Specification
- Materials: All-weather powder-coated stainless steel enclosure
- Dimensions: 1000mm (W), 2000mm (H), 700mm (D)
- Charge Protocol: 513kg at 160kW
- Input Voltage: EN 61851, IEC 62196, DIN 70121, ISO 15118 Plug & Charge
- Protection: Undervoltage & overvoltage protection, DC overcurrent protection, Over temperature protection, Surge protection device, Emergency stop button, Advanced dynamic power balancing.Optional tilt, flood and smoke detection.
Get the Ultracharge 160 installed by Power2EV
Why choose Power2EV for your Rolec product installations?
Our team of seasoned professionals is well-versed with the distinct nuances of Rolec's product range, ensuring an installation process that is smooth, efficient, and tailored to your specific requirements. Furthermore, our commitment to fostering a greener future aligns seamlessly with Rolec's sustainability ethos, making us the perfect partner to help you step into the world of electric mobility with confidence and ease. Entrust us with your installation needs and join countless satisfied customers in making a conscious choice for the environment, without compromising on quality and convenience.
Get a free quote
